Thông tin chi tiết sản phẩm:
|
| Số phần: | IMX571BLR-J | Bưu kiện: | LGA-184 |
|---|---|---|---|
| Kích thước ô đơn vị: | 3,76 mm (H) × 3,76 mm (V) | Kích thước hình ảnh: | Đường chéo 28,3 mm (Loại 1.8) |

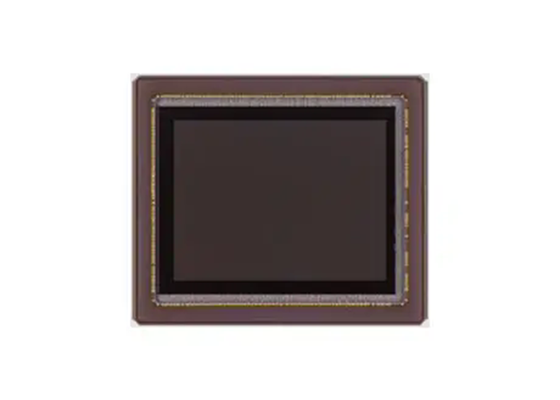

IMX571BLR-J is a diagonal 28.3 mm (Type 1.8) CMOS active pixel type image sensor with a square pixel array and 26.11 M effective pixels. This sensor incorporates maximum 36 dB PGA circuit and 16-bit A/D converter. 16-bit digital output makes it possible to readout the signals of 26.11 M effective pixels at high-speed of 6.84 frame/s in still picture mode. In addition, it realizes 12-bit digital output for high-speed 4K moving picture by window readout mode.
| Image size | Diagonal 28.3 mm (Type 1.8) |
| Total number of pixels | 6280 (H) × 4264 (V) approx. 26.78 M pixels |
| Number of effective pixels | 6252 (H) × 4176 (V) approx. 26.11 M pixels |
| Number of active pixels | 6244 (H) × 4168 (V) approx. 26.02 M pixels |
| Chip size | 27.780 mm (H) × 22.302 mm (V) |
| Unit cell size | 3.76 μm (H) × 3.76 μm (V) |
| Optical black | Horizontal (H) direction: Front 16 pixels, Rear 0 pixel; Vertical (V) direction: Front 22 pixels, Rear 0 pixel |
| Package | 184 pin LGA |
| Part Number | Package |
|---|---|
| F28386DZWTQR | NFBGA337 |
| TMS320F2809NMFA | LQFP-64 |
| TMS5701227CZWTQQ1R | NFBGA-337 |
| TMS5702124DPGEQQ1 | LQFP-144 |
| TMS5702134DPGEQQ1 | LQFP-144 |
| TMS5702124DZWTQQ1 | NFBGA-337 |
| TMS5702135DPGEQQ1 | LQFP-144 |
| TMS5702135DZWTQQ1 | NFBGA-337 |
| TMS5703134DZWTQQ1 | NFBGA-337 |
| TMS5703135DPGEQQ1 | LQFP-144 |
| MSP430G2001IPW4RQ1 | TSSOP-14 |
| MSP430G2211IRSARQ1 | QFN-16 |
| MSP430G2231IRSARQ1 | QFN-16 |
| ADSP-BF592KCPZ | 64-LFCSP |
| ADSP-BF592KCPZ-2 | 64-LFCSP |
| ADAU1452WBCPZ | 72-LFCSP |
| ADAU1701JSTZ | 48-LQFP |
| ADAU1445YSVZ-3A | 100-TQFP |
| ADSP-BF706BCPZ-4 | 88-LFCSP |
| ADSP-21479KSWZ-2A | 100-LQFP |
| ADAU1463WBCPZ300 | 88-LFCSP |
| ADBF706WCCPZ411 | 88-LFCSP |
| ADSP-BF700BCPZ-2 | 88-LFCSP |
| AD21488WBCPZ302 | 88-LFCSP |
| ADBF700WCCPZ211 | 88-LFCSP |
| AD21488WBCPZ2202 | 88-LFCSP |
| ADAU1701JSTZ-RL | 48-LQFP |
| ADAU1401AWBSTZ | 48-LQFP |
| ADAU1463WBCPZ150 | 88-LFCSP |
| ADAU1467WBCPZ300 | 88-LFCSP |
