Thông tin chi tiết sản phẩm:
|
| Mã sản phẩm: | ZED-F9P-04B-01 | Thời gian để sửa chữa đầu tiên - Bắt đầu lạnh:: | 30 s |
|---|---|---|---|
| Độ nhạy thu nhận:: | - 160 dBm | Độ chính xác của vị trí nằm ngang:: | 1,5 m |
| Nguồn cung cấp hoạt động hiện tại:: | 75 mA, 90 mA | Loại giao diện:: | I2C, SPI, UART, USB 2.0 |

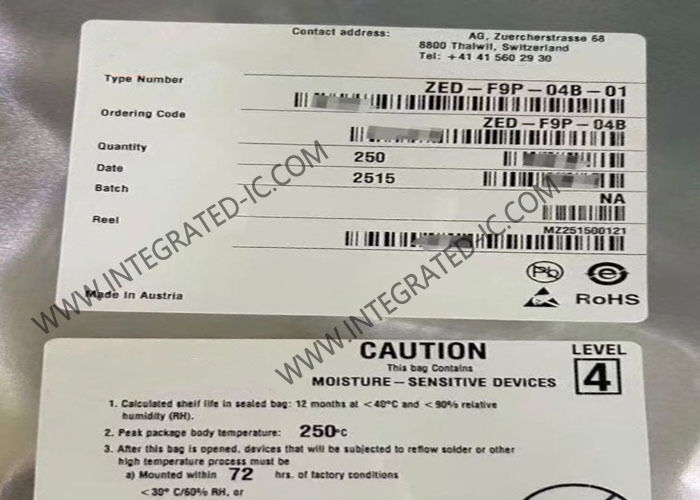

ZED-F9P-04B-01 Wireless Communication Module High Precision GNSS Module
Product Description Of ZED-F9P-04B-01
ZED-F9P-04B-01 positioning module features the F9 receiver platform, which provides multi-band GNSS to high-volume industrial applications. The ZED-F9P-04B-01 has integrated multi-band RTK and PPP-RTK1technologies for centimeter-level accuracy. The module enables precise navigation and automation of moving machinery in industrial and consumer-grade products in a compact surface-mounted form factor of only 17.0 x 22.0 x 2.4 mm.
Specifications Of ZED-F9P-04B-01
|
Frequency
|
1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
|
|
Sensitivity
|
-167dBm
|
|
Data Rate (Max)
|
921.6kbps
|
|
Modulation or Protocol
|
BeiDou, Galileo, GLONASS, GNSS, GPS
|
|
Applications
|
General Purpose
|
|
Current - Receiving
|
130mA
|
|
Data Interface
|
I2C, SPI, UART, USB
|
|
Voltage - Supply
|
2.7V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
Features Of ZED-F9P-04B-01
Concurrent reception of all constellations
Multi-band RTK with fast convergence times and reliable performance
Centimeter-level accuracy in a small and energy-efficient module
Easy integration of RTK for fast time-to-market
Native support for PointPerfect simplifies integration
Applications Of ZED-F9P-04B-01
UAVs
Robotics
Industrial navigation
Smart agriculture
Asset tracking
