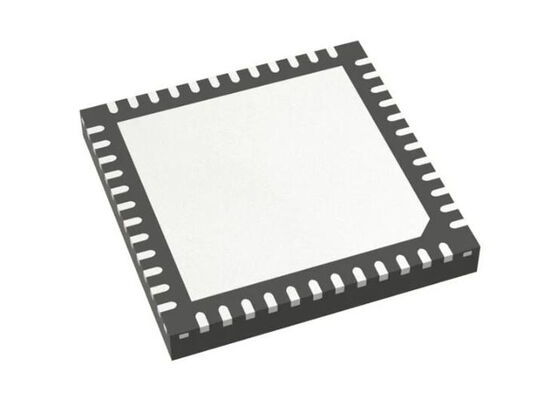

STM32WB35CCU6A Microcontroller MCU
STM32 Wireless MCU 2.4GHz Low-Power Multiprotocol Wireless Microcontroller
Product Overview
The STM32WB35CCU6A is a multiprotocol wireless and ultra-low-power device embedding a powerful radio compliant with Bluetooth® Low Energy SIG specification 5.4 and IEEE 802.15.4-2011. It features a dedicated Arm® Cortex®-M0+ for real-time low-layer operations.
Designed for extreme low-power operation, this microcontroller is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 64 MHz. The core includes a Floating Point Unit (FPU) supporting single-precision data processing, a full set of DSP instructions, and a Memory Protection Unit (MPU) for enhanced application security.
The device integrates high-speed memories including up to 512 KB of flash memory, up to 96 KB of SRAM, a Quad-SPI flash memory interface, and extensive enhanced I/Os and peripherals.
Technical Specifications
| Parameter |
Specification |
| Type |
TxRx + MCU |
| RF Family/Standard |
802.15.4, BT |
| Protocol |
BT v5.3, Thread, Zigbee® |
| Modulation |
GFSK |
| Frequency |
2.405GHz ~ 2.48GHz |
| Data Rate (Max) |
2Mbps |
| Power Output |
6dBm |
| Sensitivity |
-100dBm |
| Memory Size |
256kB Flash, 96kB SRAM |
| Serial Interfaces |
ADC, I2C, SPI, UART, USART, USB |
| GPIO |
30 |
| Voltage Supply |
1.71V ~ 3.6V |
| Current - Receiving |
4.5mA ~ 7.9mA |
| Current - Transmitting |
5.2mA ~ 12.7mA |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type |
Surface Mount |
| Package / Case |
48-UFQFN Exposed Pad |
| Supplier Device Package |
48-UFQFPN (7x7) |
Key Features
Radio Capabilities
2.4 GHz RF transceiver supporting Bluetooth® 5.4, IEEE 802.15.4-2011 PHY and MAC
Thread 1.3 and Zigbee® 3.0 support
RX sensitivity: -96 dBm (Bluetooth® Low Energy at 1 Mbps), -100 dBm (802.15.4)
Programmable output power up to +6 dBm with 1 dB steps
Integrated balun to reduce BOM
Support for 2 Mbps data rate
Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
Accurate RSSI for power control
Compliance with ETSI EN 300 328, EN 300 440, FCC CFR47 Part 15 and ARIB STD-T66
Support for external PA
Available integrated passive device (IPD) companion chips
Ultra-Low-Power Platform
1.71 to 3.6 V power supply range
-40°C to 85/105°C temperature ranges
13 nA shutdown mode
600 nA Standby mode + RTC + 32 KB RAM
2.1 µA Stop mode + RTC + 256 KB RAM
Active-mode MCU: < 53 µA/MHz when RF and SMPS on
Radio: Rx 4.5 mA / Tx at 0 dBm 5.2 mA
Core Performance
Arm® 32-bit Cortex®-M4 CPU with FPU
Adaptive real-time accelerator for 0-wait-state flash execution
Up to 64 MHz frequency
MPU, 80 DMIPS, and DSP instructions
1.25 DMIPS/MHz (Drystone 2.1)
219.48 CoreMark® (3.43 CoreMark/MHz at 64 MHz)
303 ULPMark™ CP score
Memory & Storage
Up to 1 MB flash memory with sector protection (PCROP)
Up to 256 KB SRAM with 64 KB hardware parity check
20x 32-bit backup register
Boot loader supporting USART, SPI, I2C and USB interfaces
OTA (over the air) Bluetooth® Low Energy and 802.15.4 update capability
Quad SPI memory interface with XIP
1 Kbyte (128 double words) OTP
Analog Peripherals
12-bit ADC 4.26 Msps, up to 16-bit with hardware oversampling
2x ultra-low-power comparators
Accurate 2.5 V or 2.048 V reference voltage buffered output
Operates down to 1.62 V
Applications
Home, building, and city automation
Power supplies and converters
