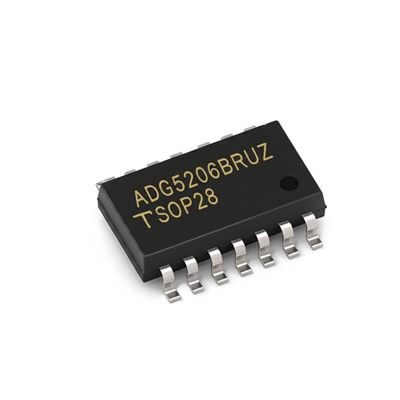

ADG5206BRUZ Integrated Circuit Chip 16-Channel CMOS Analog Multiplexer TSSOP28
The ADG5206BRUZ is a monolithic CMOS analog multiplexer comprising sixteen single channels. It switches one of sixteen inputs to a common output, as determined by the 4-bit binary address lines (A0, A1, A2, and A3).
Specifications
| Parameter |
Value |
| Multiplexer/Demultiplexer Circuit |
16:1 |
| Number of Circuits |
1 |
| On-State Resistance (Max) |
160Ω |
| Channel-to-Channel Matching (ΔRon) |
4Ω |
| Voltage - Supply, Single (V+) |
9V ~ 40V |
| Voltage - Supply, Dual (V±) |
±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) |
230ns, 185ns |
| -3db Bandwidth |
65MHz |
| Charge Injection |
0.45pC |
| Channel Capacitance (CS(off), CD(off)) |
3.3pf, 62pF |
| Current - Leakage (IS(off)) (Max) |
100pA |
| Crosstalk |
-76dB @ 1MHz |
| Operating Temperature |
-40°C ~ 125°C (TA) |
| Mounting Type |
Surface Mount |
| Package / Case |
28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package |
28-TSSOP |
Key Features
- Latch-up proof
- 3.5 pF off source capacitance
- 64 pF off drain capacitance
- 0.35 pC typical charge injection
- ±0.02 nA on channel leakage
- Low on resistance: 155 Ω typical
- ±9 V to ±22 V dual-supply operation
- 9 V to 40 V single-supply operation
- VSS to VDD analog signal range
- Human body model (HBM) ESD rating: 8 kV all other pins
Applications
- Automatic test equipment
- Data acquisition
- Instrumentation
- Avionics
- Battery Monitoring
- Communication systems
