Thông tin chi tiết sản phẩm:
|
| Số phần: | TPS25200QDRVRQ1 | Giới hạn hiện tại: | 2,7 MỘT |
|---|---|---|---|
| HOẠT ĐỘNG CUNG CẤP HIỆN TẠI: | 147 UA | Số lượng kênh: | 1 kênh |
| Nhiệt độ hoạt động: | -40°C ~ 125°C (TJ) | Danh mục sản phẩm: | Bộ điều khiển điện áp hoán đổi nóng |

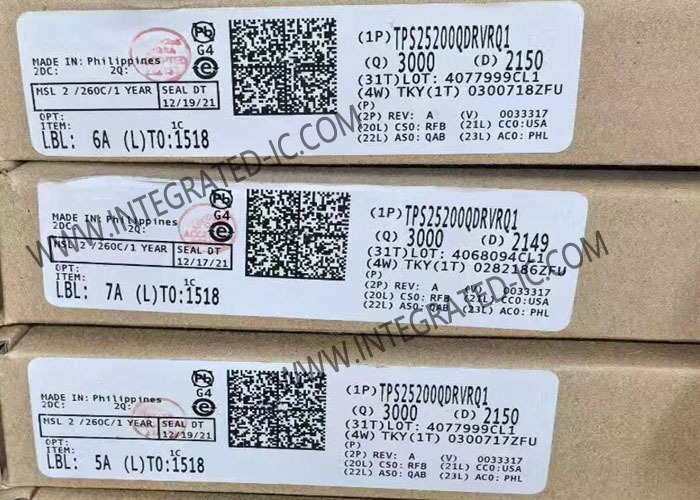

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator
Product Description Of TPS25200QDRVRQ1
TPS25200QDRVRQ1 is a 5V eFuse with a precision current-limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and overcurrent events.
TPS25200QDRVRQ1 is an intelligent protected load-switch with a VIN value tolerant to 20 V. In the event that an incorrect voltage is applied at the IN pin, the output clamps to 5.4 V to protect the load. If the voltage at the IN pin exceeds 7.6 V, the device disconnects the load to prevent damage to the device, load, or both.
Specification Of TPS25200QDRVRQ1
|
Function
|
Electronic Fuse
|
|
Accuracy
|
±6.3%
|
|
Voltage - Input
|
2.5V ~ 6.5V
|
|
Current - Output
|
2.4A
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Grade
|
Automotive
|
|
Qualification
|
AEC-Q100
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-WDFN Exposed Pad
|
|
Supplier Device Package
|
6-WSON (2x2)
|
Features Of TPS25200QDRVRQ1
2.5V to 6.5V Operation
20V Continuous VIN (Absolute Maximum)
7.6V Input Overvoltage Shutoff
5.25V to 5.55V Fixed Overvoltge Clamp
0.6µs Overvoltage Lockout Response
3.5µs Short-Circuit Response
67mΩ High-Side MOSFET
Accurate 2.5A Minimum, 2.9A Maximum and 2.1A Minimum, 2.5A Maximum Setting (Including Resistor)
±6.3% Current-Limit Accuracy at 2.7A
Reverse Current Blocking While Disabled
Built-in Soft Start
Pin-to-Pin Compatible with TPS2553
Applications Of TPS25200QDRVRQ1
Automotive USB Port Protection
USB Power Switch
USB Slave Devices
