Thông tin chi tiết sản phẩm:
|
| Số phần: | ADR5040artz | Shunt hiện tại - Tối đa: | 15 Ma |
|---|---|---|---|
| Điện áp đầu ra: | 2.048 V | Độ chính xác ban đầu: | 0,2 % |
| Hệ số nhiệt độ: | 100 trang/phút/C | Loại tham chiếu: | Tài liệu tham khảo chính xác của Shunt |

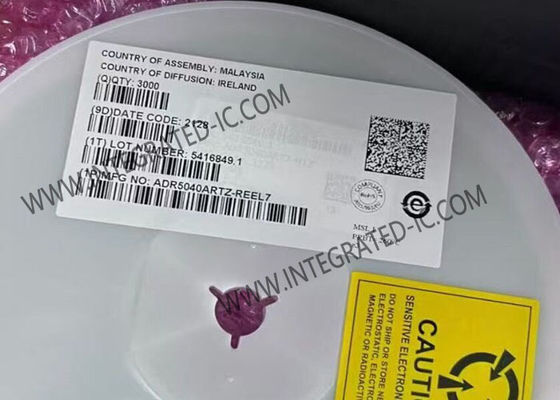

ADR5040ARTZ Integrated Circuit Chip 15mA Micropower Shunt Voltage Reference SOT-23-3
Product Description Of ADR5040ARTZ
ADR5040ARTZ is high precision shunt voltage references, housed in ultrasmall SOT-23-3 packages. ADR5040ARTZ voltage references are multipurpose, easy-to-use references that can be used in a vast array of applications. ADR5040ARTZ feature low temperature drift, an initial accuracy of better than 0.1%, and fast settling time.
Specification Of ADR5040ARTZ
|
Reference Type
|
Shunt
|
|
Output Type
|
Fixed
|
|
Voltage - Output (Min/Fixed)
|
2.048V
|
|
Current - Output
|
15 mA
|
|
Tolerance
|
±0.2%
|
|
Temperature Coefficient
|
100ppm/°C
|
|
Noise - 0.1Hz to 10Hz
|
2.8µVrms
|
|
Noise - 10Hz to 10kHz
|
120µVrms
|
|
Current - Cathode
|
60 µA
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
Features Of ADR5040ARTZ
Ultracompact SOT-23 packages
Low temperature coefficient: 75 ppm/°C (maximum)
Pin compatible with LM4040/LM4050
Initial accuracy: ±0.1%
No external capacitor required
Wide operating current range: 50 µA to 15 mA
Extended temperature range: −40°C to +125°C
Qualified for automotive applications
Applications Of ADR5040ARTZ
Portable, battery-powered equipment
Automotives
Power supplies
Data acquisition systems
Instrumentation and process control
Energy management
