Thông tin chi tiết sản phẩm:
|
| Số phần: | BSC016N04LSG | Loạt: | OptiMOS™ |
|---|---|---|---|
| Vds - Điện áp sự cố nguồn xả: | 40 V | Id - Dòng xả liên tục: | 100 A |
| Rds On - Điện trở nguồn thoát nước: | 1,3 mOhm | Qg - Phí cổng: | 150 nC |

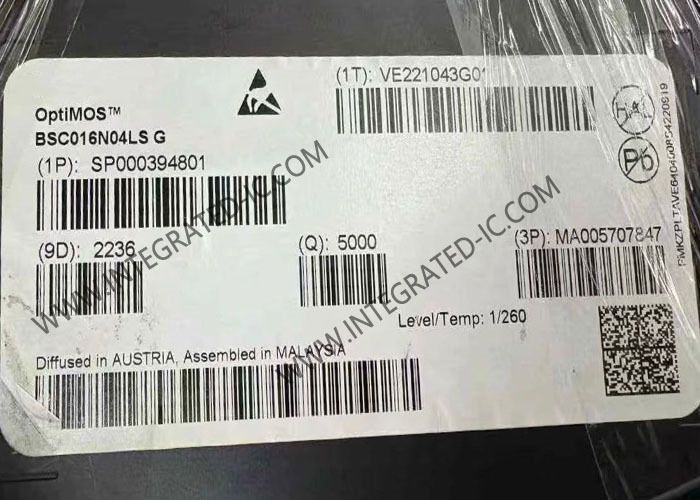

BSC016N04LSG Integrated Circuit Chip OptiMOS 3 Power Transistor 40V MOSFET Transistors
Product Description Of BSC016N04LSG
BSC016N04LSG is 40V, OptiMOS™ 3 Power-Transistor. The OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition the BSC016N04LSG can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.
Specification Of BSC016N04LSG
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
31A (Ta), 100A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
1.6mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
2V @ 85µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
150 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
12000 pF @ 20 V
|
|
Power Dissipation (Max)
|
2.5W (Ta), 139W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TDSON-8-1
|
|
Package / Case
|
8-PowerTDFN
|
Features Of BSC016N04LSG
Excellent gate charge x R DS(on) product (FOM)
Very low on-resistance R DS(on)
Ideal for fast switching applictions
RoHS compliant - halogen free
MSL1 rated
Highest system efficiency
Less paralleling required
Increased power density
System cost reduction
Very low voltage overshoot
