Thông tin chi tiết sản phẩm:
|
| Số phần: | BSC027N04LSG | Vds - Điện áp sự cố nguồn xả: | 40 V |
|---|---|---|---|
| Id - Dòng xả liên tục: | 100 A | Rds On - Điện trở nguồn thoát nước: | 2.3 mOhms |
| Qg - Phí cổng: | 85 nC | PD - Tăng sức mạnh: | 83 W |

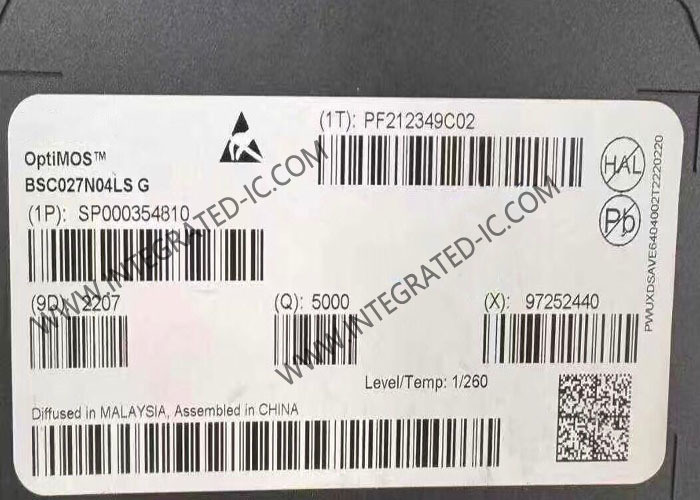

BSC027N04LSG Integrated Circuit Chip 40V OptiMOS N-Channel Power MOSFET Transistors
Product Description Of BSC027N04LSG
BSC027N04LSG is 40V, OptiMOS™N-Channel Power MOSFET Transistors. OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.
Specification Of BSC027N04LSG
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
24A (Ta), 100A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
2.7mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
2V @ 49µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
85 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
6800 pF @ 20 V
|
|
Power Dissipation (Max)
|
2.5W (Ta), 83W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TDSON-8-1
|
|
Package / Case
|
8-PowerTDFN
|
Features Of BSC027N04LSG
Fast switching MOSFET for SMPS
Optimized technology for DC/DC converters
N-channel; Logic level
Excellent gate Charge x RDS(on)product (FOM)
Very Low on-resistance RDS(on)
Ideal for fast switching applictions
100% Avalanche tested
Applications Of BSC027N04LSG
Fuel-cell control unit (FCCU)
Adapters and chargers
48 V intermediate bus converter (IBC)
Edge computing
