Thông tin chi tiết sản phẩm:
|
| Số phần: | A7986ATR | Cấu trúc liên kết: | Tăng, Buck |
|---|---|---|---|
| Điện áp đầu ra: | 850 mV đến 38 V | Đầu ra hiện tại: | 2 A |
| Dòng điện hoạt động: | 2,4mA | Tần số chuyển đổi: | 250 kHz đến 2 MHz |

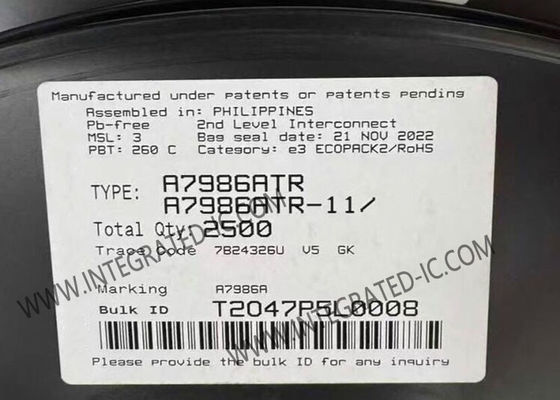

A7986ATR Integrated Circuit Chip 3A Step Down Switching Regulator HSOP8 Buck Regulator
Product Description Of A7986ATR
A7986ATR is a step-down switching regulator with a 3.7 A (min.) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions. The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN.
Requiring a minimum set of external components, the A7986ATR includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz. The HSOP8 package with exposed pad allows the reduction of Rth(JA) down to 40 °C/W.
Specification Of A7986ATR
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
4.5V
|
|
Voltage - Input (Max)
|
38V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
38V
|
|
Current - Output
|
3A
|
|
Frequency - Switching
|
250kHz
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width) Exposed Pad
|
|
Supplier Device Package
|
8-HSOP-EP
|
Features Of A7986ATR
3 A DC output current
4.5 V to 38 V input voltage
Output voltage adjustable from 0.6 V
250 kHz switching frequency, programmable up to 1 MHz
Internal soft-start and enable
Low dropout operation: 100% duty cycle
Voltage feed-forward
Zero load current operation
Overcurrent and thermal protection
HSOP8 package
Applications Of A7986ATR
Dedicated to automotive applications
Automotive LED driving
