Thông tin chi tiết sản phẩm:
|
| Số phần: | IPG20N10S4L-35 | Loạt: | OptiMOS™ |
|---|---|---|---|
| Số lượng kênh: | 2 kênh | Vds - Điện áp sự cố nguồn xả: | 100 V. |
| Id - Dòng xả liên tục: | 20 A | Rds On - Điện trở nguồn thoát nước: | 35 mOhm |

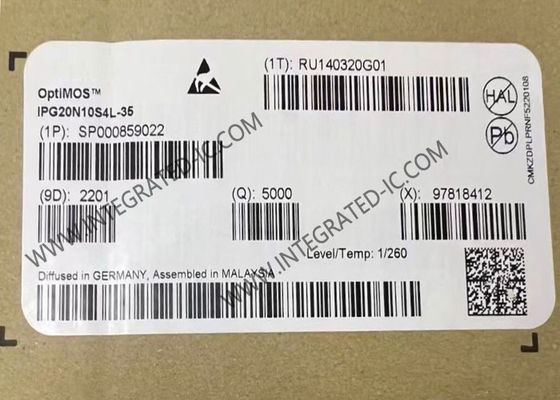

IPG20N10S4L-35 Integrated Circuit Chip OptiMOS-T2 Power Transistor 100V MOSFET Transistor
Product Description Of IPG20N10S4L-35
IPG20N10S4L-35 is 100V, OptiMOS™-T2 Dual N-Channel Automotive MOSFET Transistors in dual SSO8 (5x6) package.
Specification Of IPG20N10S4L-35
|
Technology
|
MOSFET (Metal Oxide)
|
|
Configuration
|
2 N-Channel (Dual)
|
|
FET Feature
|
Logic Level Gate
|
|
Drain to Source Voltage (Vdss)
|
100V
|
|
Current - Continuous Drain (Id) @ 25°C
|
20A
|
|
Rds On (Max) @ Id, Vgs
|
35mOhm @ 17A, 10V
|
|
Vgs(th) (Max) @ Id
|
2.1V @ 16µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
17.4nC @ 10V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1105pF @ 25V
|
|
Power - Max
|
43W
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-PowerVDFN
|
|
Supplier Device Package
|
PG-TDSON-8-4
|
Features Of IPG20N10S4L-35
Dual N-ch-Logic Level-Enhancement mode
Automotive AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
Green Product (RoHS compliant)
100% Avalanche tested
PPAP Capable Device
Dual Super S08 substitutes DPAKs
