Thông tin chi tiết sản phẩm:
|
| Số phần: | UCC37322DGNR | Số lượng trình điều khiển:: | 1 tài xế |
|---|---|---|---|
| Số lượng đầu ra:: | 1 đầu ra | Dòng điện đầu ra:: | 9 A |
| Điện áp cung cấp - Tối thiểu:: | 4 V | Điện áp cung cấp - Max:: | 15 V |

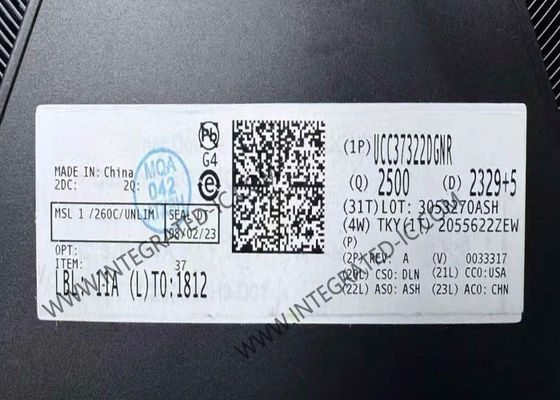

UCC37322DGNR Integrated Circuit Chip Single 9A High-Speed Low-Side Mosfet Driver With Enable
Product Description Of UCC37322DGNR
UCC37322DGNR is high-speed drivers deliver 9 A of peak drive current in an industry standard pinout. These drivers can drive the largest of MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions.
Specifications Of UCC37322DGNR
|
Driven Configuration |
Low-Side |
|
Channel Type |
Single |
|
Number of Drivers |
1 |
|
Gate Type |
MOSFET (N-Channel, P-Channel) |
|
Voltage - Supply |
4V ~ 15V |
|
Logic Voltage - VIL, VIH |
1.1V, 2.7V |
|
Current - Peak Output (Source, Sink) |
9A, 9A |
|
Input Type |
Non-Inverting |
|
Rise / Fall Time (Typ) |
20ns, 20ns |
|
Operating Temperature |
0°C ~ 70°C (TA) |
Features Of UCC37322DGNR
Industry-Standard Pin-Out With Addition of Enable Function
High-Peak Current Drive Capability of ±9 A at theMiller plateau region Using TrueDrive
Efficient Constant Current Sourcing Using a Unique BiPolar and CMOS Output Stage
TTL/CMOS Compatible Inputs Independent of Supply Voltage
20-ns Typical Rise and Fall Times With 10-nF Load
Typical Propagation Delay Times of 25 ns With Input Falling and 35 ns With Input Rising
4-V to 15-V Supply Voltage
Available in Thermally Enhanced MSOP PowerPAD™ Package With 4.7°C/W θjc
Rated From –40°C to +105°C
Pb-Free Finish (CU NIPDAU) on 8-pin SOIC and PDIP Packages
Applications Of UCC37322DGNR
Switch Mode Power Supplies
DC-DC Converters
Motor Controllers
Class-D Switching Amplifiers
Line Drivers
Pulse Transformer Drivers
