Thông tin chi tiết sản phẩm:
|
| Số phần: | STW6N95K5 | Vds - Điện áp sự cố nguồn xả: | 950 V |
|---|---|---|---|
| Id - Dòng xả liên tục: | 9 A | Rds On - Điện trở nguồn thoát nước: | 1,25 Ohm |
| Qg - Phí cổng: | 13 nC | PD - Tăng sức mạnh: | 90 w |

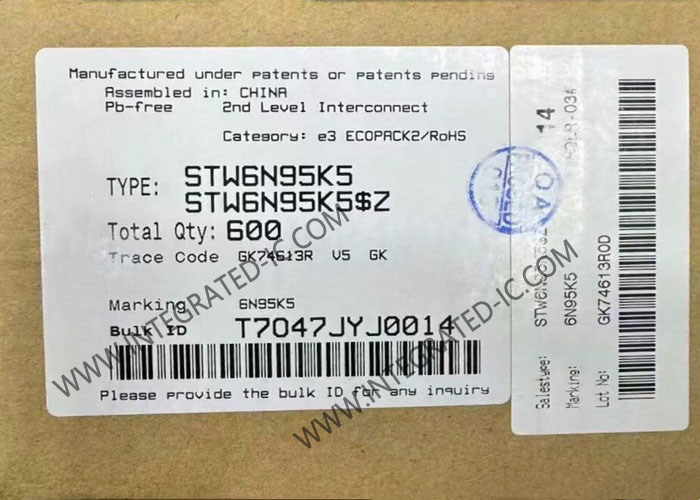

STW6N95K5 Integrated Circuit Chip 950V MDmesh K5 Series N-Channel MOSFET Transistors
Product Description Of STW6N95K5
STW6N95K5 is 950V, 9A, MDmesh K5 Series N-Channel Power MOSFET Transistors in a TO-247 package. This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
Specification Of STW6N95K5
|
Series
|
SuperMESH5™
|
|
Packaging
|
Tube
|
|
Part Status
|
Active
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
950 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
9A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
1.25Ohm @ 3A, 10V
|
|
Vgs(th) (Max) @ Id
|
5V @ 100µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
13 nC @ 10 V
|
|
Vgs (Max)
|
±30V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
450 pF @ 100 V
|
|
Power Dissipation (Max)
|
90W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
TO-247-3
|
|
Package / Case
|
TO-247-3
|
Features Of STW6N95K5
Industry’s lowest RDS(on) x area
Industry’s best FoM (figure of merit)
Ultra-low gate charge
100% avalanche tested
Zener-protected
