Thông tin chi tiết sản phẩm:
|
| Số phần: | NCV57080ADR2G | Điện áp cô lập: | 3,75 kVrms |
|---|---|---|---|
| PD - Tăng sức mạnh: | 1,3 W | Độ trễ lan truyền - Tối đa: | 60 giây |
| Đầu ra hiện tại: | 6,5 A | Nhiệt độ hoạt động: | -40°C ~ 125°C (TA) |
| Làm nổi bật: | NCV57080ADR2G,NCV57080ADR2G Integrated Circuit Chip,IGBT/MOSFET Gate Driver |
||

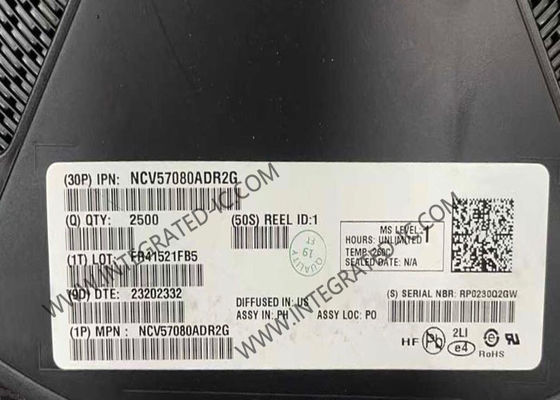

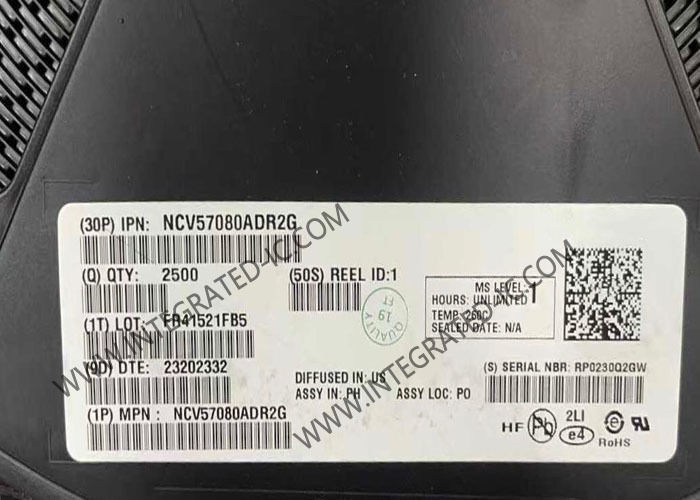

NCV57080ADR2G Integrated Circuit Chip Isolated High Current IGBT/MOSFET Gate Driver
Product Description Of NCV57080ADR2G
NCV57080ADR2G is high−current single channel IGBT/MOSFET gate drivers with 3.75 kVrms internal galvanic isolation, designed for high system efficiency and reliability in high power applications. The driver accommodate wide range of input bias voltage and signal levels from 3.3 V to 20 V and they are available in narrow−body SOIC−8 package.
Specification Of NCV57080ADR2G
|
Technology
|
Capacitive Coupling
|
|
Number of Channels
|
1
|
|
Voltage - Isolation
|
1200Vrms
|
|
Common Mode Transient Immunity (Min)
|
100kV/µs
|
|
Propagation Delay tpLH / tpHL (Max)
|
85ns, 85ns
|
|
Rise / Fall Time (Typ)
|
13ns, 13ns
|
|
Current - Output High, Low
|
8A, 8A
|
|
Current - Peak Output
|
8A
|
|
Voltage - Output Supply
|
0V ~ 32V
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
Features Of NCV57080ADR2G
High Peak Output Current (+6.5 A/−6.5 A)
Low Clamp Voltage Drop Eliminates the Need of Negative Power Supply to Prevent Spurious Gate Turn−on (Version A)
Short Propagation Delays with Accurate Matching
IGBT/MOSFET Gate Clamping during Short Circuit
IGBT/MOSFET Gate Active Pull Down
Tight UVLO Thresholds for Bias Flexibility
Wide Bias Voltage Range including Negative VEE2 (Version B)
3.3 V, 5 V, and 15 V Logic Input
3.75 kVRMS VISO (I−O) (to meet UL1577 Requirements)
High Transient Immunity
High Electromagnetic Immunity
Applications Of NCV57080ADR2G
Motor Control
Uninterruptible Power Supplies (UPS)
Automotive Applications
Industrial Power Supplies
Solar Inverters
HVAC
