Thông tin chi tiết sản phẩm:
|
| Số phần: | ALT1250TG-D0-GG | Bưu kiện: | WLCSP |
|---|---|---|---|
| Kích thước mô -đun: | Nhỏ như 100mm² | Định vị: | Hỗ trợ chế độ kép LTE-M/NB-IOT, GNSS và dựa trên tế bào |
| Giao diện: | UART, SPI, FS USB2.0, USIM hoặc EUICC, I2S/PCM Audio, GPIOS, I2C, ADC phụ trợ và PWM | Kiểu: | Chế độ kép LTE-M/NB-IOT modem |
| Làm nổi bật: | ALT1250TG-D0-GG,ALT1250TG-D0-GG IoT Chip,Dual Mode LTE-M/NB-IoT Modem |
||

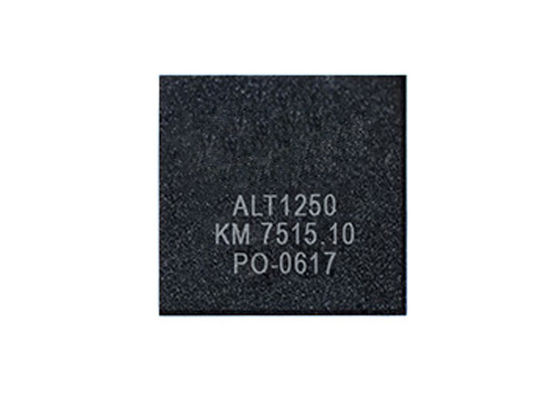

ALT1250TG-D0-GG IoT Chip Dual Mode LTE-M/NB-IoT Modem Cellular IoT Modem
Product Description Of ALT1250TG-D0-GG
ALT1250TG-D0-GG is a highly-integrated dual mode LTE-M/NB-IoT modem with 2G fallback, engineered specifically for cellular IoT applications that prioritize battery life and small form factors. This advanced modem solution features an integrated SIM (iSIM), MCU, and rich application layer, enabling miniature module sizes as small as 100mm².
Tech Highlights Of ALT1250TG-D0-GG
LTE Radio Technology Support
- CAT-M1 R13 with DL/UL speeds of 300/375 Kbps
- CAT-M1 R14 with DL/UL speeds of 588/1119 Kbps
- CAT-NB1 R13 with DL/UL speeds of 27/65 Kbps
- CAT-NB2 R14 with DL/UL speeds of 127/158 Kbps
Highly Integrated SoC
- 6th generation Software Defined Radio architecture featuring maximum flexibility at extremely low power
- Integrated in-chip: LTE CAT-M1/NB1/NB2 modem with 2G fallback, GNSS, radio transceiver, PLL supporting TCXO inputs, PMU with voltage regulators and RTC
- Integrated ARM Cortex M4 MCU subsystem for customer developed applications
- Carrier grade integrated SIM (iSIM)
- Secure boot architecture and a robust hardware-based security framework
- Integrated voice processing for VoLTE and Voice Over-the-Top applications
- WLCSP packaging for low cost devices
Location Services
- Assisted GPS and GLONASS navigation systems are supported
- Cellular-based location
Interfaces
- UART, SPI, FS USB2.0, USIM or eUICC, I2S/PCM audio, GPIOs, I2C, Auxiliary ADC and PWM
Other Electronic Components In Stock
| Part Number | Package |
| IKZA50N65SS5XKSA1 | TO-247-4 |
| IKW75N65SS5XKSA1 | TO-247-3 |
| IKN06N60RC2ATMA1 | TO-261-4 |
| AIGW40N65F5XKSA1 | TO-247-3 |
| IGW75N60H3FKSA1 | TO-247-3 |
| IKW60N60H3FKSA1 | TO-247-3 |
| IKZA40N120CH7XKSA1 | TO-247-4 |
| IKQB200N75CP2AKSA1 | TO-247-3 |
| IKQB160N75CP2AKSA1 | TO-247-3 |
| IKN01N60RC2ATMA1 | TO-261-4 |
| IKN03N60RC2ATMA1 | TO-261-3 |
| IKN04N60RC2ATMA1 | TO-261-4 |
| IKD03N60RFATMA1 | TO-252-3 |
| IKD06N60RC2ATMA1 | TO-252-3 |
| IGB10N60TATMA1 | TO-263-3 |
| IKD15N60RFATMA1 | TO-252-3 |
| IKB20N60H3ATMA1 | TO-263-3 |
| IKB15N65EH5ATMA1 | TO-263-3 |
| IKB20N65EH5ATMA1 | TO-263-3 |
| IGB50N65H5ATMA1 | TO-263-3 |
| AIGB40N65H5ATMA1 | TO-263-3 |
| AIKB30N65DF5ATMA1 | TO-263-3 |
| AIGB50N65F5ATMA1 | TO-263-3 |
| IKB40N65EH5ATMA1 | TO-263-3 |
| AIKB40N65DH5ATMA1 | TO-263-3 |
| AUIRG4BC30SSTRL | TO-263-3 |
| IKA06N60TXKSA1 | TO-220-3 |
| IHW40N65R6XKSA1 | TO-247-3 |
| IKFW40N65ES5XKSA1 | TO-247-3 |
| IKFW60N65ES5XKSA1 | TO-247-3 |
