Thông tin chi tiết sản phẩm:
|
| Số phần: | STD10NM60N | Cực tính của bóng bán dẫn:: | kênh N |
|---|---|---|---|
| Số kênh:: | 1 kênh | Vds - Điện áp sự cố nguồn xả:: | 600 V |
| Id - Dòng xả liên tục:: | 10 A | Rds On - Điện trở nguồn xả:: | 550 mOhm |

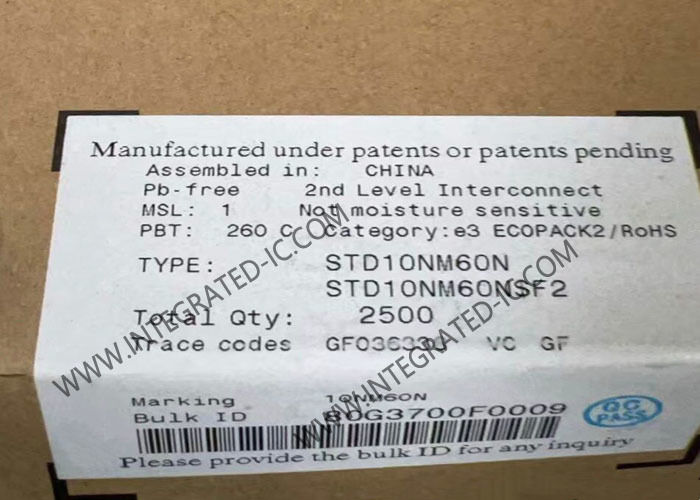

STD10NM60N Integrated Circuit Chip N-Channel 600V 10A 530mΩ MOSFET Transistors
Product Description Of STD10NM60N
STD10NM60N is an N-channel Power MOSFET developed using the second generation of MDmesh technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Specifications Of STD10NM60N
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
600 V |
|
Current - Continuous Drain (Id) @ 25°C |
10A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
550mOhm @ 4A, 10V |
|
Vgs(th) (Max) @ Id |
4V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
19 nC @ 10 V |
|
Vgs (Max) |
±25V |
|
Input Capacitance (Ciss) (Max) @ Vds |
540 pF @ 50 V |
|
Power Dissipation (Max) |
70W (Tc) |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
Features Of STD10NM60N
100% avalanche tested
Low input capacitance and gate charge
Low gate input resistance
Applications Of STD10NM60N
Switching applications
