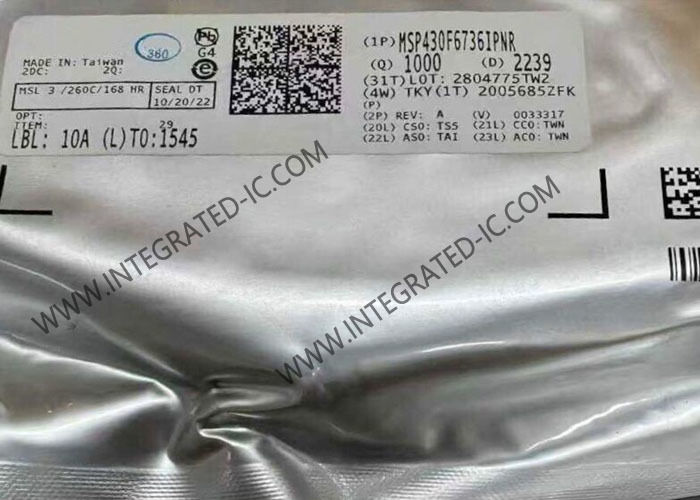

MSP430F6736IPNR Microcontroller MCU 16-Bit 25MHz Microcontroller 80-LQFP

MSP430F6736IPNR Microcontroller MCU 16-Bit 25MHz Microcontroller 80-LQFP

Product Description Of MSP430F6736IPNR
MSP430F6736IPNR device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in 3 µs (typical).

Specifications Of MSP430F6736IPNR

Features Of MSP430F6736IPNR
Low Supply Voltage Range:
3.6 V Down to 1.8 V
Ultra-Low Power Consumption
Active Mode (AM):
All System Clocks Active
265 µA/MHz at 8 MHz, 3.0 V, Flash Program Execution (Typical)
140 µA/MHz at 8 MHz, 3.0 V, RAM Program Execution (Typical)
Standby Mode (LPM3):
Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup:
1.7 µA at 2.2 V, 2.5 µA at 3.0 V (Typical)
Off Mode (LPM4):
Full RAM Retention, Supply Supervisor Operational, Fast Wakeup:
1.6 µA at 3.0 V (Typical)
Shutdown RTC Mode (LPM3.5):
Shutdown Mode, Active Real-Time Clock (RTC) With Crystal:
1.24 µA at 3.0 V (Typical)
Shutdown Mode (LPM4.5):
0.78 µA at 3.0 V (Typical)
Wake up From Standby Mode in 3 µs (Typical)
16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
Flexible Power Management System
Fully Integrated LDO With Programmable Regulated Core Supply Voltage
Supply Voltage Supervision, Monitoring, and Brownout
System Operation From up to Two Auxiliary Power Supplies
Unified Clock System
FLL Control Loop for Frequency Stabilization
Low-Power Low-Frequency Internal Clock Source (VLO)
Low-Frequency Trimmed Internal Reference Source (REFO)
32-kHz Crystals (XT1)
One 16-Bit Timer With Three Capture/Compare Registers
Three 16-Bit Timers With Two Capture/Compare Registers Each
Enhanced Universal Serial Communication Interfaces

Applications Of MSP430F6736IPNR
2-Wire Single-Phase Metering
3-Wire Single-Phase Metering
Tamper-Resistant Meters
