Thông tin chi tiết sản phẩm:
|
| Số phần: | EN5337QI | Điện áp đầu ra: | 600 mV đến 5 V |
|---|---|---|---|
| Đầu ra hiện tại: | 3 a | Tần số chuyển đổi: | 5 MHz |
| Số lượng đầu ra: | 1 đầu ra | Nhiệt độ hoạt động: | -40 ° C ~ 85 ° C. |

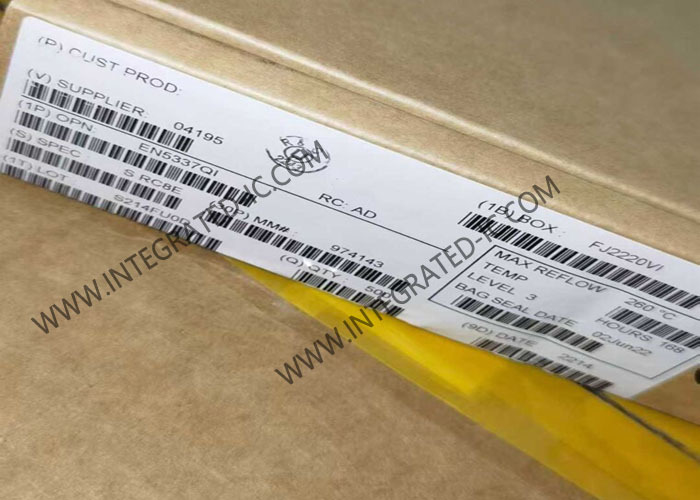

EN5337QI Integrated Circuit Chip 3A PowerSoC Enpirion Power Solutions QFN38
Product Description Of EN5337QI
EN5337QI is a Power Supply on a Chip (PowerSoC) DC-DC converter. It integrates MOSFET switches, all small-signal circuits, compensation, and the inductor in an advanced 4mm x 7mm QFN package.
Specification Of EN5337QI
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.375V
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output 1
|
0.6 ~ 5V
|
|
Current - Output (Max)
|
3A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
Remote On/Off, OCP, OTP, SCP, UVLO
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
92%
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
38-FQFN Exposed Pad
|
|
Size / Dimension
|
0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
|
|
Supplier Device Package
|
38-QFN (7x4)
|
|
Control Features
|
Enable, Active High
|
Features Of EN5337QI
Integrated INDUCTOR, MOSFETS, Controller
Total Power Solution ≈ 75mm2
Minimal external components.
3A Continuous Output Current Capability
5MHz operating frequency. Switching frequency can be phase locked to an external clock.
High efficiency, up to 92%.
Wide input voltage range of 2.375V to 5.5V.
Output Enable pin and Power OK signal.
Programmable soft-start time.
Under Voltage Lockout, Over Current, Short Circuit and Thermal Protection.
RoHS compliant, MSL level 3, 260C reflow.
Applications Of EN5337QI
POL for low-power processors, network processors, DSPs, FPGAs
Noise sensitive applications such as A/V, RF and Gbit I/O
Low voltage, distributed power architectures.
Computing, Networking, DSL, STB, DVR, DTV, iPC
Ripple sensitive applications
Beat frequency sensitive applications
