Thông tin chi tiết sản phẩm:
|
| Số phần: | BSZ018N04LS6 | Vds - Điện áp sự cố nguồn xả: | 40 V |
|---|---|---|---|
| Id - Dòng xả liên tục: | 40 A | Qg - Phí cổng: | 31 nC |
| Rds On - Điện trở nguồn thoát nước: | 2,1 mOhm | PD - Tăng sức mạnh: | 83 W |

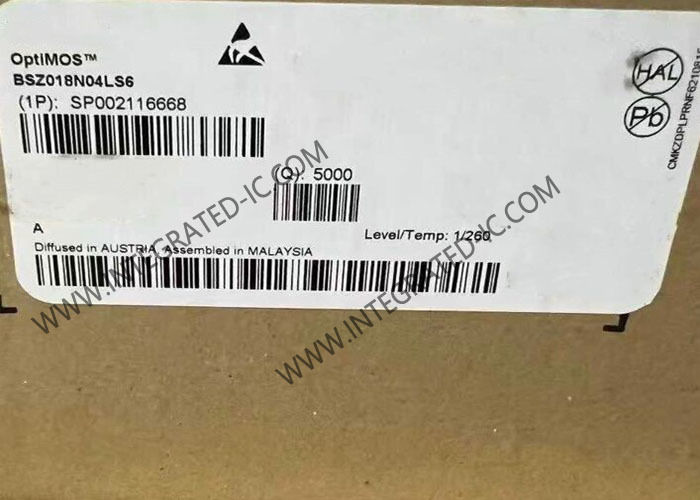

BSZ018N04LS6 Integrated Circuit Chip 40V OptiMOS 6 Power MOSFET Transistors
Product Description Of BSZ018N04LS6
BSZ018N04LS6 is 40V, OptiMOS™ 6 power MOSFET Transistors, it is optimized for a variety of applications and circuits, such as synchronous rectification in switched mode power supplies (SMPS) in servers, desktop PCs, wireless chargers, quick chargers and ORing circuits.
Specification Of BSZ018N04LS6
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
27A (Ta), 40A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
1.8mOhm @ 20A, 10V
|
|
Vgs(th) (Max) @ Id
|
2.3V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
31 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
2700 pF @ 20 V
|
|
Power Dissipation (Max)
|
2.5W (Ta), 83W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TSDSON-8-FL
|
|
Package / Case
|
8-PowerTDFN
|
Features Of BSZ018N04LS6
Compared to alternative products:
RDS(on) reduced by 30%
Improved FOM Qg x RDS(on) by 29%
Improved FOM Qgd x RDS(on) by 46%
Optimized for synchronous rectification
Suited for ORing circuits
RoHS compliant
halogen free
MSL1 rated
Typical Applications Of BSZ018N04LS6
Adapters and chargers
48 V intermediate bus converter (IBC)
Telecommunications infrastructure
