Thông tin chi tiết sản phẩm:
|
| Số phần: | NCP1611ADR2G | Tần số chuyển đổi: | 20 kHz |
|---|---|---|---|
| PD - Tăng sức mạnh: | 550 mW | Điện áp - Cung cấp: | 9,5V ~ 35V |
| Nhiệt độ hoạt động: | -40 ° C ~ 125 ° C. | Loại sản phẩm: | PFC - Hiệu chỉnh hệ số công suất |

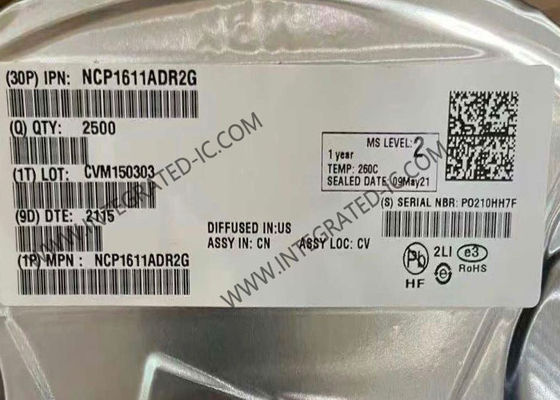

NCP1611ADR2G Integrated Circuit Chip Power Factor Correction 550mW Power Factor Controller
Product Description Of NCP1611ADR2G
NCP1611ADR2G is Enhanced, High-Efficiency Power Factor Conduction, it is designed to drive PFC boost stages based on an innovative Current Controlled Frequency Fold-back (CCFF) method. In this mode, the circuit classically operates in Critical conduction Mode (CrM) when the inductor current exceeds a programmable value. When the current is below this preset level, the NCP1611ADR2G linearly decays the frequency down to about 20 kHz when the current is null.
Specification Of NCP1611ADR2G
|
Mode
|
Current Controlled Frequency Foldback (CCFF), Critical Conduction (CRM)
|
|
Current - Startup
|
20 µA
|
|
Voltage - Supply
|
9.5V ~ 35V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
Features Of NCP1611ADR2G
Near-Unity Power Factor
Critical Conduction Mode (CrM)
Current Controlled Frequency Fold-back (CCFF): Low Frequency Operation is Forced at Low Current Levels
On-time Modulation to Maintain a Proper Current Shaping in CCFF Mode
Skip Mode Near the Line Zero Crossing
Fast Line / Load Transient Compensation (Dynamic Response Enhancer)
Valley Turn on
High Drive Capability: −500 mA / +800 mA
VCC Range: from 9.5 V to 35 V
Low Start-up Consumption
A Version: Low VCC Start-up Level (10.5 V), B Version: High VCC Start-up level (17.0 V)
Line Range Detection
Configurable for Low Harmonic Content across Wide Line/Load Range
Typical Applications Of NCP1611ADR2G
PC, TV, Adapters Power Supplies
LED Drivers and Light Ballasts (including dimmable versions)
All Off-Line Applications Requiring Power Factor Correction
