Thông tin chi tiết sản phẩm:
|
| Số phần: | ADG4612BRUZ | Số kênh:: | 4 kênh |
|---|---|---|---|
| Cấu hình:: | 4 x SPST | Về mức kháng cự - Tối đa:: | 6.1 Ohm |
| Điện áp cung cấp - Tối thiểu:: | 3 V | Điện áp cung cấp - Max:: | 12 v |

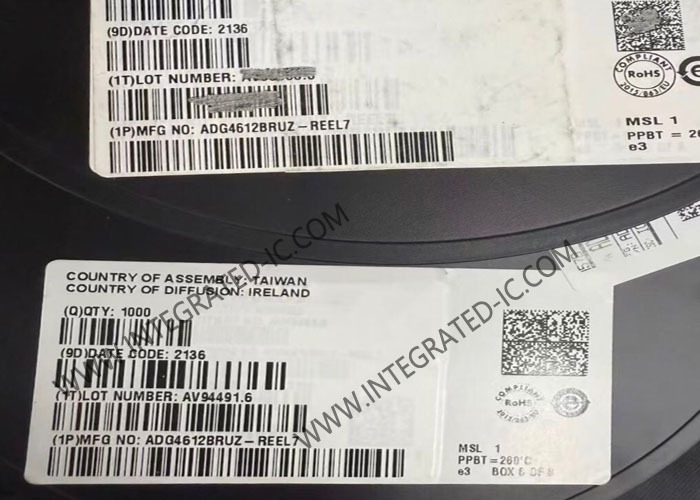

ADG4612BRUZ Integrated Circuit Chip Quad SPST Switches With 5Ω On Resistance
Product Description Of ADG4612BRUZ
ADG4612BRUZ contain four independent single-pole/ single-throw (SPST) switches. The ADG4612BRUZ switches are turned on with Logic 1 on the appropriate control input. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies.
Specifications Of ADG4612BRUZ
|
Switch Circuit |
SPST - NO |
|
Multiplexer/Demultiplexer Circuit |
1:1 |
|
Number of Circuits |
4 |
|
On-State Resistance (Max) |
5.1Ohm |
|
Channel-to-Channel Matching (ΔRon) |
50mOhm |
|
Voltage - Supply, Single (V+) |
3V ~ 12V |
|
Voltage - Supply, Dual (V±) |
±3V ~ 5.5V |
|
Switch Time (Ton, Toff) (Max) |
73ns, 91ns |
|
-3db Bandwidth |
250MHz |
|
Charge Injection |
292pC |
|
Channel Capacitance (CS(off), CD(off)) |
11.5pF, 11.5pF |
|
Current - Leakage (IS(off)) (Max) |
10nA |
|
Crosstalk |
-74dB @ 1MHz |
|
Operating Temperature |
-40°C ~ 105°C (TA) |
Features Of ADG4612BRUZ
Power Off Protection
Switch guaranteed OFF with no power supplies present Inputs are high impedance with no power
Switch turns OFF if input > VDD + VT
Over-voltage protection up to +16V
PSS Robust
Negative Signal Capability passes signals down to -5.5V
6.1Ω Max On Resistance
1.4Ω On Resistance Flatness
±3V to ±5.5V dual supply
3V to 12 V single supply
3 V logic-compatible inputs
Rail-to-rail operation
16-lead TSSOP and 16 lead 3mm x 3mm LFCSP
Applications Of ADG4612BRUZ
Hot swap applications
Data acquisition systems
Battery-powered systems
Automatic test equipment
Communication systems
Relay Replacement
