Thông tin chi tiết sản phẩm:
|
| Part Number: | SN6505ADBVR | Cung cấp hiện tại: | 1mA |
|---|---|---|---|
| Voltage - Supply: | 2.25V ~ 5.5V | Operating Temperature: | -55°C ~ 125°C |
| Loại lắp đặt: | Mặt đất | Applications: | Transformer Driver |

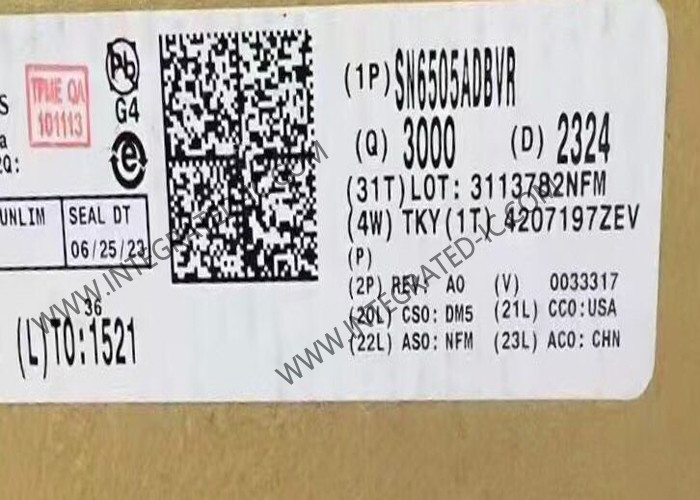

SN6505ADBVR Integrated Circuit Chip 1A Low Noise Transformer Drivers SOT-23-6
Product Description Of SN6505ADBVR
SN6505ADBVR is a low-noise, low-EMI push-pull transformer driver, specifically designed for small form factor, isolated power supplies. SN6505ADBVR drives low-profile, center-tapped transformers from a 2.25 V to 5 V DC power supply. Ultra-low noise and EMI are achieved by slew rate control of the output switch voltage and through Spread Spectrum Clocking (SSC).
Specification Of SN6505ADBVR
| Part Number: | SN6505ADBVR |
| Driver | |
| SMD/SMT | |
| SOT-23-6 | |
| 2 A | |
| 5.5 V | |
| 2.25 V | |
| 16 V | |
| - 55 ℃ | |
| + 125 ℃ | |
| 1 mA | |
| Input Voltage Range: | 2.25 V to 5.5 V |
| Output Voltage Range: | 0 V to 16 V |
| Product Type: | Power Management Specialized - PMIC |
Features Of SN6505ADBVR
Push-pull driver for transformers
Wide input voltage range: 2.25 V to 5.5 V
High output drive: 1 A at 5 V supply
Low R ON 0.25 Ω max at 4.5 V supply
Ultra-low EMI
Spread spectrum clocking
Precision internal oscillator options: 160 kHz ( SN6505A) and 420 kHz ( SN6505B)
Synchronization of multiple devices with external clock input
Slew-rate control
1.7 A Current-limit
Low shutdown current: <1 µA
Thermal shutdown
Wide temperature range: –55°C to 125°C
Small 6-Pin SOT23 (DBV) package
Soft-start to reduce In-rush current
Applications Of SN6505ADBVR
Isolated power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, low-power LAN
Low-noise isolated USB supplies
Process control
Telecom supplies
Radio supplies
Distributed supplies
Medical instruments
Precision instruments
Low-noise filament supplies
