Thông tin chi tiết sản phẩm:
|
| Part Number: | PEX8619-BA50BIG | Lanes: | 16 |
|---|---|---|---|
| Latency: | 140ns | Typical Power: | 1.99 Watts |
| Configurable Ports: | Up to 16 configurable ports | Type: | 16-lane PCI Express switch |
| Làm nổi bật: | PEX8619-BA50BIG,PEX8619-BA50BIG Ethernet IC,16-Port PCI Express Switch |
||

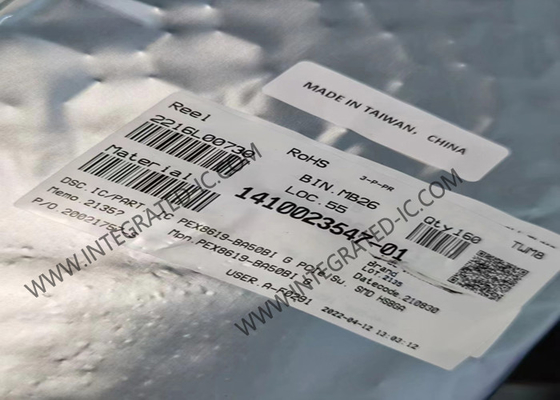

PEX8619-BA50BIG Ethernet IC 16-Lane 16-Port PCI Express Switch HSBGA-324 PCIe Switch
Product Description Of PEX8619-BA50BIG
PEX8619-BA50BIG: 16 Lane, 16 Port PCI Express Switch, 19 x 19mm PBGA.
The ExpressLane™ PEX8619-BA50BIG offers 16 PCI Express Gen 2 (5.0 GT/s) lanes, capable of configuring up to 16 flexible ports and fully conforms to the PCI Express Base Specification, rev 2.0.
PEX8619-BA50BIG architecture supports a high-performance DMA engine with four DMA channels and internal buffer space for internal descriptor support. Up to 256 descriptors are supported internally or alternatively descriptors can also exist in host memory. Each descriptor provides support for large transfer sizes (up to 128MB) giving the user the capability to perform very large data transfers in any direction (memory to device, device to device, memory to memory).
PEX8619-BA50BIG also supports cut-thru with the industry's lowest latency of 140ns (x4 to x1) and offers two virtual channels for traffic prioritization in the system. The device also features an on-chip Non-Transparent port for dual-host and failover applications and supports dual-clock domain operation by virtue of support for Spread Spectrum Clock (SSC) isolation, is offered in a 19 x 19mm 324-ball PBGA and is available in both leaded and lead-free packaging. This device supports Access Control Services (ACS).
Specification Of PEX8619-BA50BIG
| Part Number | PEX8619-BA50BIG |
|---|---|
| ACS/ARI | Yes |
| DMA | 4 |
| Dual/Multi Cast | DC |
| Lanes | 16 |
| Latency | 140ns |
| Packaging Size | 19mm X 19mm |
| PCI-SIG® Base Spec. | r2.0 |
| Port Count | 16 |
| Power Typ. | 2 |
| Read Pacing | Yes |
| SSC (Spread Spectrum Clocking) | 1 |
| Temperature | -40°C +85°C |
| Virtual Channels | 2 |
Features Of PEX8619-BA50BIG
16-lane PCI Express switch - Integrated 5.0 GT/s SerDes
Up to 16 configurable ports
19mm x 19mm, 324-ball HSBGA
Typical Power: 1.99 Watts
