Thông tin chi tiết sản phẩm:
|
| một phần số: | TPS92602BQPWPRQ1 | Số đầu ra: | 2 |
|---|---|---|---|
| Điện áp - Cung cấp (Tối thiểu): | 4V | Điện áp - Cung cấp (Tối đa): | 40V |
| Điện áp - Đầu ra: | 4V ~ 75V | Hiện tại - Đầu ra / Kênh: | 1.5A |
Automobile Chips TPS92602BQPWPRQ1 Single And Dual Channel Automotive Headlight LED Driver
Product Description Of TPS92602BQPWPRQ1
TPS92602BQPWPRQ1 devices is a singlechannel and dual-channel high-side-current LED driver. With full protection and diagnostics, this family of devices is dedicated for and ideally suited to automotive front lighting.
Specification Of TPS92602BQPWPRQ1
|
Part Number |
TPS92602BQPWPRQ1 |
|
Frequency |
100kHz ~ 600kHz |
|
Dimming |
Analog, PWM |
|
Applications |
Automotive, Lighting |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |

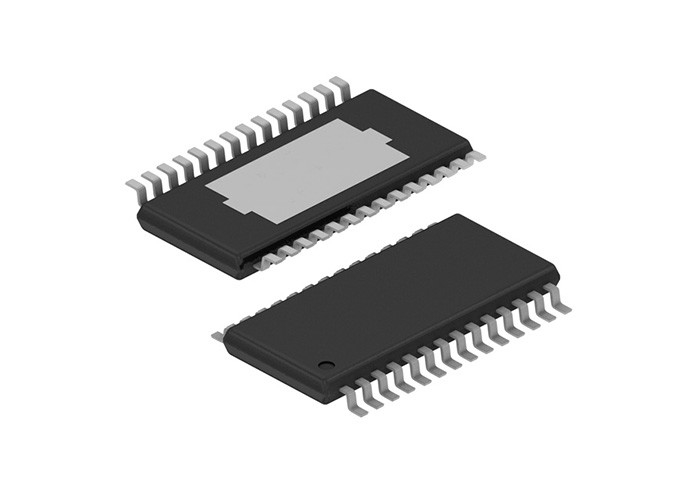

28-PowerTSSOP (0.173", 4.40mm Width) |
Features Of TPS92602BQPWPRQ1
Input Voltage: 4 V–40 V (45 V Abs. Max.)
Output Voltage: 4 V–75 V (80 V Abs. Max.)
Fixed-Frequency Current-Mode Controller With Integrated Slope Compensation
Two Regulation Loops, Constant-Current Output and Constant-Voltage Output of Each Channel
High-Side Current Sense
Output Voltage Sense, Internal Voltage Reference: 2.2 V ±5%
Integrated Low-Side NMOS-FET Driver: Peak Gate-Drive Current Typ. 0.7 A
Frequency Synchronization
Both PWM Dimming and Analog Dimming
Applications Of TPS92602BQPWPRQ1
Automotive Headlight LED Driver
High-Brightness LED Applications
Typical Schematic Of TPS92602BQPWPRQ1
