Thông tin chi tiết sản phẩm:
|
| một phần số: | MC9S08PA32AVLC | Xe buýt: | Lên đến 20 MHz |
|---|---|---|---|
| Phạm vi nhiệt độ: | -40 °C đến 105 °C | Bộ chuyển đổi dữ liệu: | A/D 12x12b |
| Kích thước bộ nhớ chương trình: | 32KB (32K x 8) | kết nối: | I²C, LINbus, SPI, UART/USART |

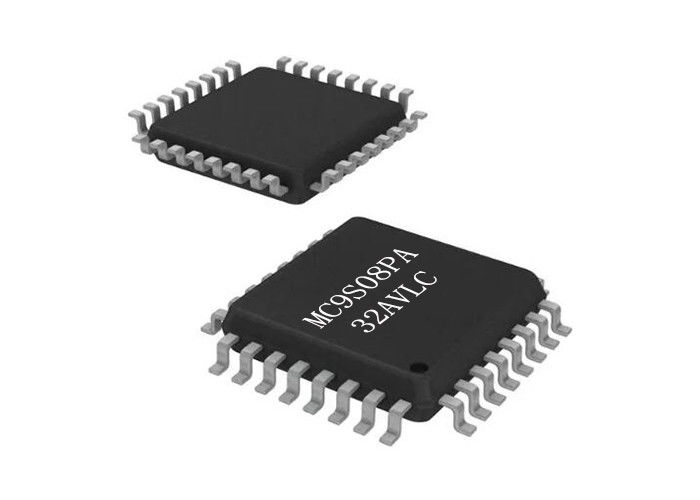

Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH
Product Description Of MC9S08PA32AVLC
MC9S08PA32AVLC is 8-Bit S08 central processor unit (CPU), Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 105 °C. Package is 32-LQFP (7x7).
Specification Of MC9S08PA32AVLC
| Part Number | MC9S08PA32AVLC |
|
Core Processor
|
S08
|
|
Core Size
|
8-Bit
|
|
Speed
|
20MHz
|
|
Connectivity
|
I²C, LINbus, SPI, UART/USART
|
|
Peripherals
|
LVD, POR, PWM, WDT
|
|
Number of I/O
|
28
|
|
Program Memory Size
|
32KB (32K x 8)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
256 x 8
|
|
RAM Size
|
4K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2.7V ~ 5.5V
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
32-LQFP
|
|
Supplier Device Package
|
32-LQFP (7x7)
|
Features Of MC9S08PA32AVLC
Typical Crystal Or Resonator Circuit Of MC9S08PA32AVLC
